COMMENCAL FRS RIDE UTAH DIRT

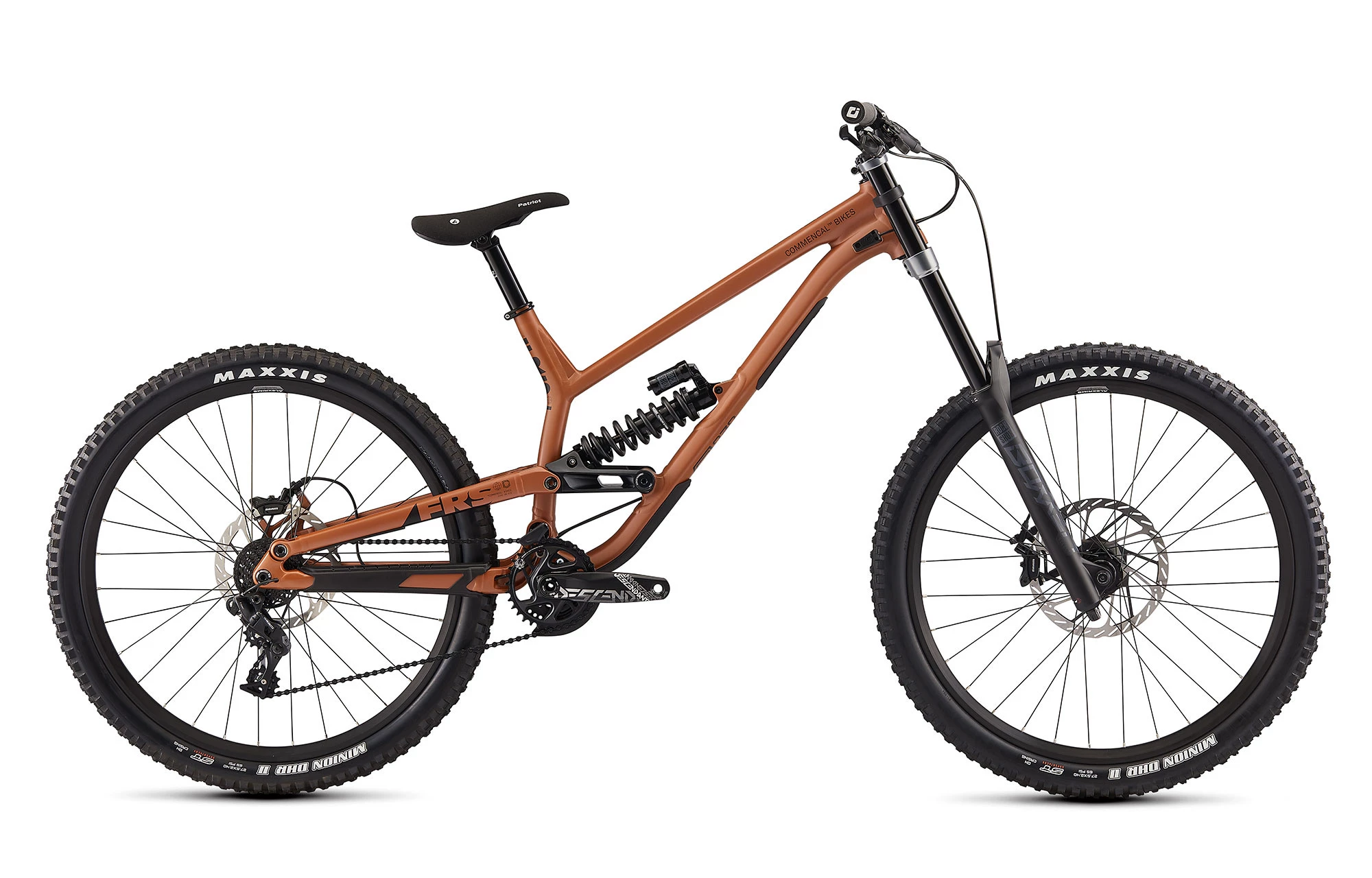

L’illustration de ce modèle n’est pas une photo, c’est une représentation 3D, les photos studios avec les spécifications listées ci-dessous seront disponibles très prochainement.

1. Specs

   • CADRE2022 FURIOUS, 200 mm travel

     27.5”, Alloy 6069, triple butted tubes, T4, T6. Enduro bearings

   • AMORTISSEURROCKSHOX Super Deluxe Select Coil

     250 x 75 mm, LSC, rebound. Spring rates: 300lbs on S, 350lbs on M, 400lbs on L, 450lbs on XL

   • FOURCHEROCKSHOX Boxxer Select, 200 mm travel

     27.5″, Charger RC damper, Debonair, rebound, Boost (20 x 110 mm), 46 mm offset, 0 Token

   • JEU DE DIRECTIONACROS ZS44 / ZS56

     Alloy cups, sealed bearings

   • POTENCERIDE ALPHA DH 40

     40 mm extension, direct mount, 31.8 mm

   • CINTRERIDE ALPHA R27

     31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L – 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

   • GRIPSODI Elite Motion

     Soft pro compound, single clamp, black

   • FREINSSRAM Guide RE, 4 pistons, MatchMaker compatible

     Rotor: SRAM HS2 220/200 mm, 6-bolt

   • SHIFTERSSRAM GX DH

     7 sp

   • GUIDE CHAINEE13 Vario

     32-34t

   • DERAILLEURSRAM GX DH

     7 sp

   • BOITIER DE PEDALIERSRAM DUB

     Pressfit

   • PEDALIERTRUVATIV Descendant DH, 165 mm crank arms, DUB

     Chainring: TRUVATIV Descendant DH X-Sync, 34t

   • CHAINEKMC X11EL

     Black

   • CASSETTESRAM GX DH

     7 sp, 11-25t

   • JANTESALEXRIMS FR37

     27.5”, 32h, 30 mm inner width

   • MOYEUXRear: FORMULA DHG-150 – Front: FORMULA DHL-93

     Rear: 32h, sealed bearings – Front: 32h, sealed bearings

   • RAYONSSAPIM Race

     J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

   • PNEUSRear: MAXXIS DHR II – Front: MAXXIS DHR II

     Rear: 27.5″ x 2.4″, DH casing, ST – Front: 27.5″ x 2.4″, DH casing, ST

   • TIGE DE SELLESDG Micro I-Beam

     31.6 mm, 250 mm length

   • SELLESDG Patriot I-Beam

     Kevlar reinforced

   • POIDS16,5 kg

     Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

   • PEDALESNo

   • COULEURUTAH Dirt

     Matte Finish

   • ACCESSOIRESDown tube protector, chainstay protector, seatstay protector, shuttle pad, fork bumpers

2. Tech

   • TYPE DE VELODH / FREERIDE

   • CADREAl 6066T6

   • POIDS DU CADRE4,1 kg

   • DEBATTEMENT ARRIERE200 mm

   • ENTRE-AXE / COURSE250 mm / 75 mm

   • COMPATIBLE PIGGY BACKYes

   • BUSELURES AMORTISSEUR20 x 8 mm / 30 x 10 mm

   • HAUTEUR DE FOURCHE RECOMMANDEE / MAX581 mm / 595 mm

   • DOUILLE DE DIRECTIONTAPERED 1-1/8″ / 1-1/2″

   • JEU DE DIRECTIONZS44 / ZS56

   • LARGEUR MAXIMALE PNEUS (ETRTO)65 mm

   • STANDARD FREIN A DISQUEPostmount 200 mm

   • DIAMETRE MAX DISQUE DE FREIN AR203 mm

   • DIAMETRE TIGE DE SELLE / COLLIER DE SELLE31,6 mm / 34,9 mm

   • BOITIER DE PEDALIERPress Fit BB 107

   • ISCGISCG 05

   • DERAILLEUR AVANTNo

   • AXE DE ROUE ARRIERE150 x 12 mm

3. Géometrie

4. Tailles

5. Photos

6. News

var productInfo = {geometry : {data : [{name : “LONGUEUR TUBE DE SELLE”,option : [{name: “S”,value: “420,0”},{name: “M”,value: “420,0”},{name: “L”,value: “420,0”},{name: “XL”,value: “420,0”}]},{name : “ANGLE TUBE DE SELLE”,option : [{name: “S”,value: “63”},{name: “M”,value: “63”},{name: “L”,value: “63”},{name: “XL”,value: “63”}]},{name : “ANGLE DE DIRECTION”,option : [{name: “S”,value: “64”},{name: “M”,value: “64”},{name: “L”,value: “64”},{name: “XL”,value: “64”}]},{name : “HAUTEUR DE DOUILLE”,option : [{name: “S”,value: “110,0”},{name: “M”,value: “110,0”},{name: “L”,value: “110,0”},{name: “XL”,value: “110,0”}]},{name : “EMPATTEMENT”,option : [{name: “S”,value: “1223,0”},{name: “M”,value: “1248,0”},{name: “L”,value: “1273,0”},{name: “XL”,value: “1293”}]},{name : “LONGUEUR TUBE SUPERIEUR”,option : [{name: “S”,value: “589,0”},{name: “M”,value: “614,0”},{name: “L”,value: “638,0”},{name: “XL”,value: “660,0”}]},{name : “LONGUEUR BASES”,option : [{name: “S”,value: “435,0”},{name: “M”,value: “435,0”},{name: “L”,value: “435,0”},{name: “XL”,value: “435,0”}]},{name : “HAUTEUR BOITIER DE PEDALIER”,option : [{name: “S”,value: “-7,0”},{name: “M”,value: “-7,0”},{name: “L”,value: “-7,0”},{name: “XL”,value: “-7,0”}]},{name : “HAUTEUR DE FOURCHE”,option : [{name: “S”,value: “581,0”},{name: “M”,value: “581,0”},{name: “L”,value: “581,0”},{name: “XL”,value: “581,0”}]},{name : “HAUTEUR A L'ENTREJAMBE”,option : [{name: “S”,value: “732,0”},{name: “M”,value: “728,0”},{name: “L”,value: “722,0”},{name: “XL”,value: “718,0”}]},{name : “PROJETE HORIZONTAL BB/TT”,option : [{name: “S”,value: “440,0”},{name: “M”,value: “465,0”},{name: “L”,value: “490,0”},{name: “XL”,value: “510,0”}]},{name : “PROJETE VERTICAL BB/TT”,option : [{name: “S”,value: “613,0”},{name: “M”,value: “613,0”},{name: “L”,value: “613,0”},{name: “XL”,value: “613,0”}]},],image: “https://tech.commencal.com/m/images/geo/GEO-FURIOUS-MY20-21-JPG.jpg”},size: {data : [{name : “S”, minCm : “158”, maxCm : “170”, minInch: “5.2”, maxInch: “5.7”},{name : “M”, minCm : “168”, maxCm : “180”, minInch: “5.6”, maxInch: “5.11”},{name : “L”, minCm : “178”, maxCm : “190”, minInch: “5.10”, maxInch: “6.3”},{name : “XL”, minCm : “188”, maxCm : “210”, minInch: “6.2”, maxInch: “6.11”}], conf: {minCm: “145”,maxCm: “230”,minInch: “4’9””,maxInch: “7’2””}},video : “”,photo : {folder: “FURIOUS 22”,data: [“URL_DE_LA_PHOTO”, “URL_DE_LA_PHOTO”, “URL_DE_LA_PHOTO”]}, idProduit : “144”};
