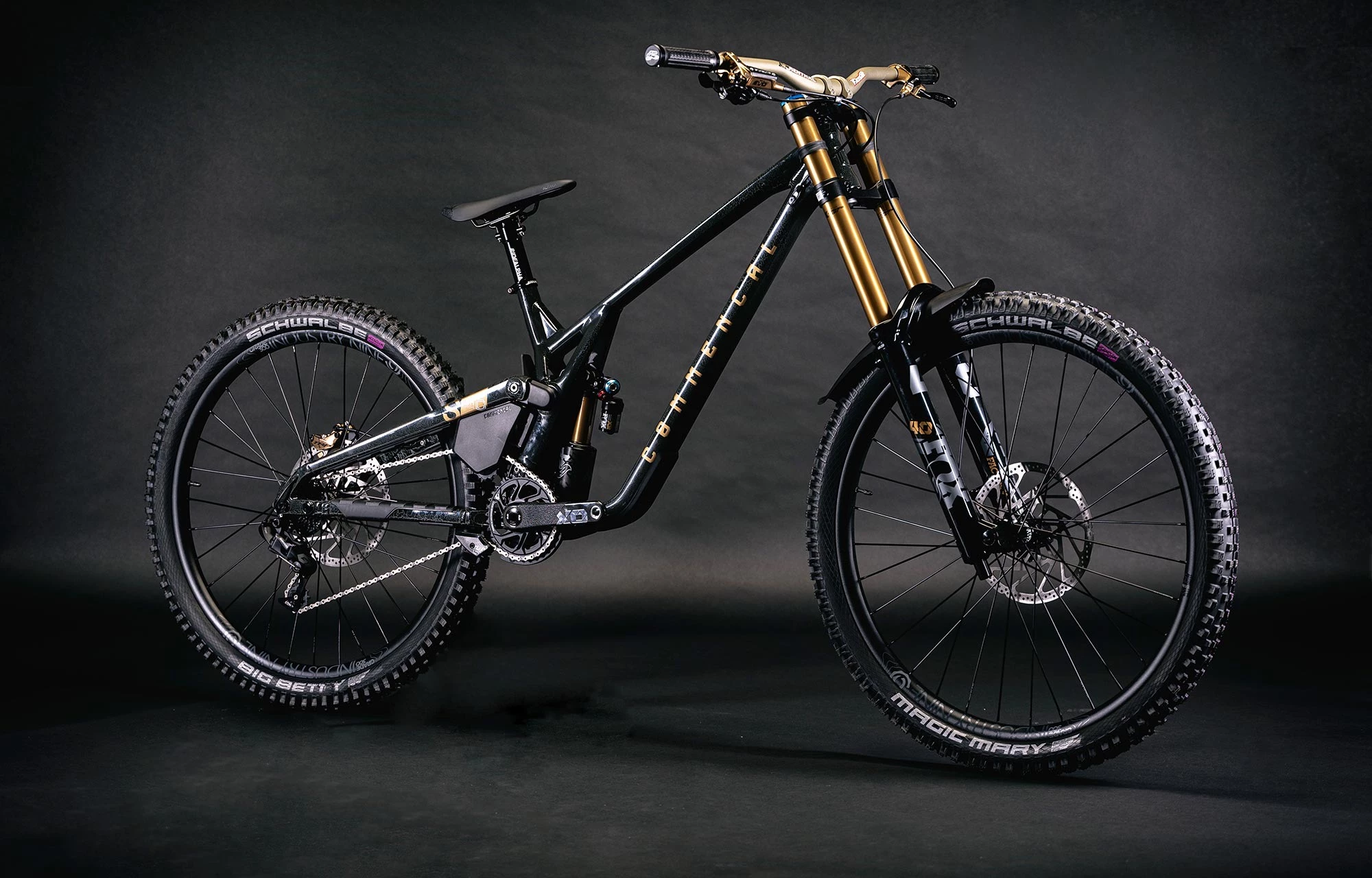

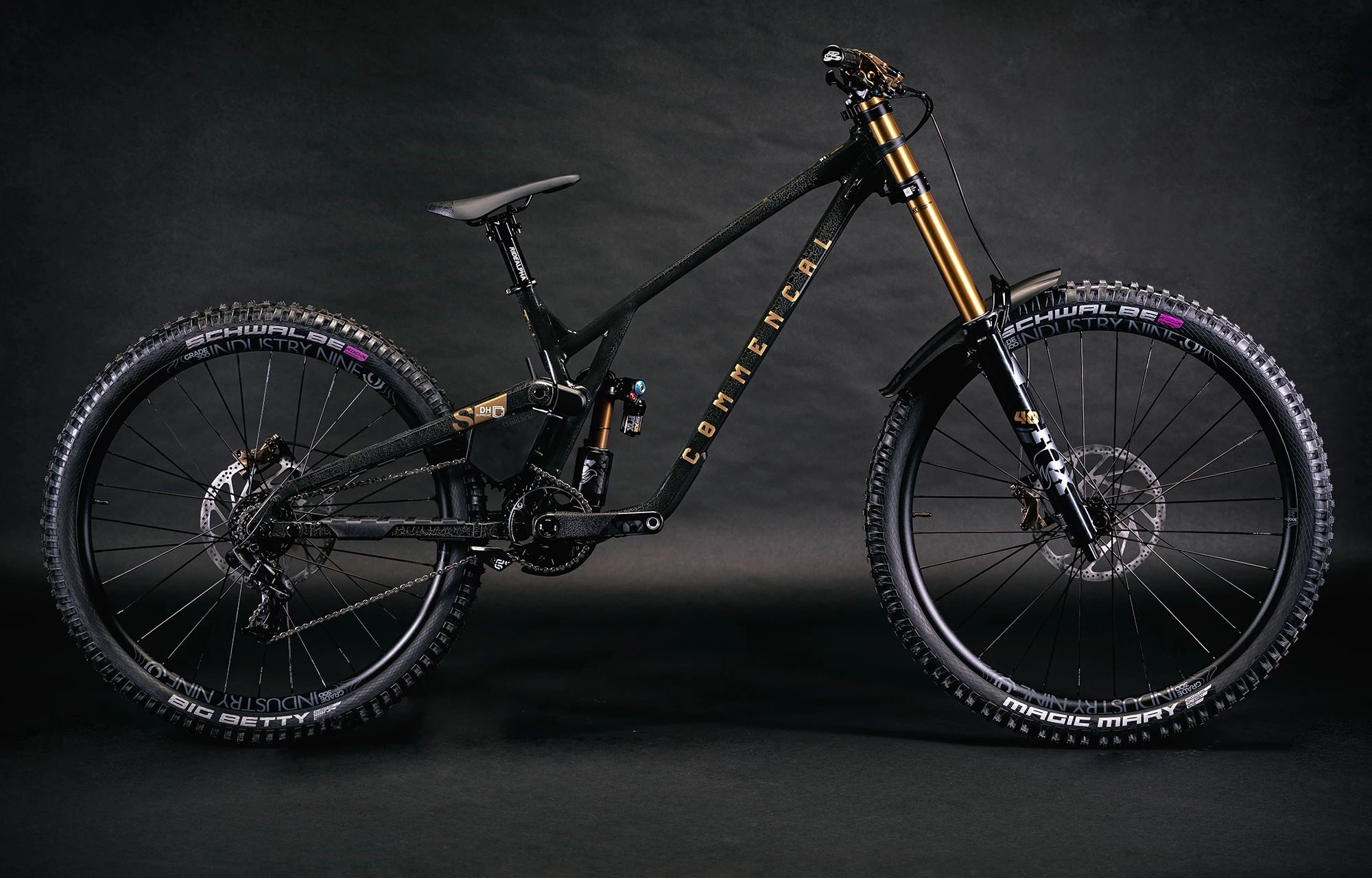

COMMENCAL SUPREME DH V5 WRINKLED GREY

Voici donc le SUPREME DH V5, synthèse parfaite de la collaboration de nos athlètes et de notre R&D.
3 années de gestation pour aboutir à ce concentré de technologie et d’expérience.
Son palmarès dès sa première année (2022) en Coupe du Monde est finalement sa meilleure publicité, 28 podiums, 3 overalls (Women, Men & Team) !

Avec sa toute nouvelle cinématique 6 Bar link – HVCS pour High Virtual Contact System, et son cadre 100% aluminium, nous restons fidèles à nos convictions tout en recherchant toujours plus de performance et de dynamisme.
Le SUPREME DH V5 est également pourvu de nombreux points d’ajustement afin de permettre à tous de régler au mieux “SA” machine à tuer le chrono.

1. Specs

   • CADRESupreme DH V5 29/27, 220 mm travel

     29”, Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

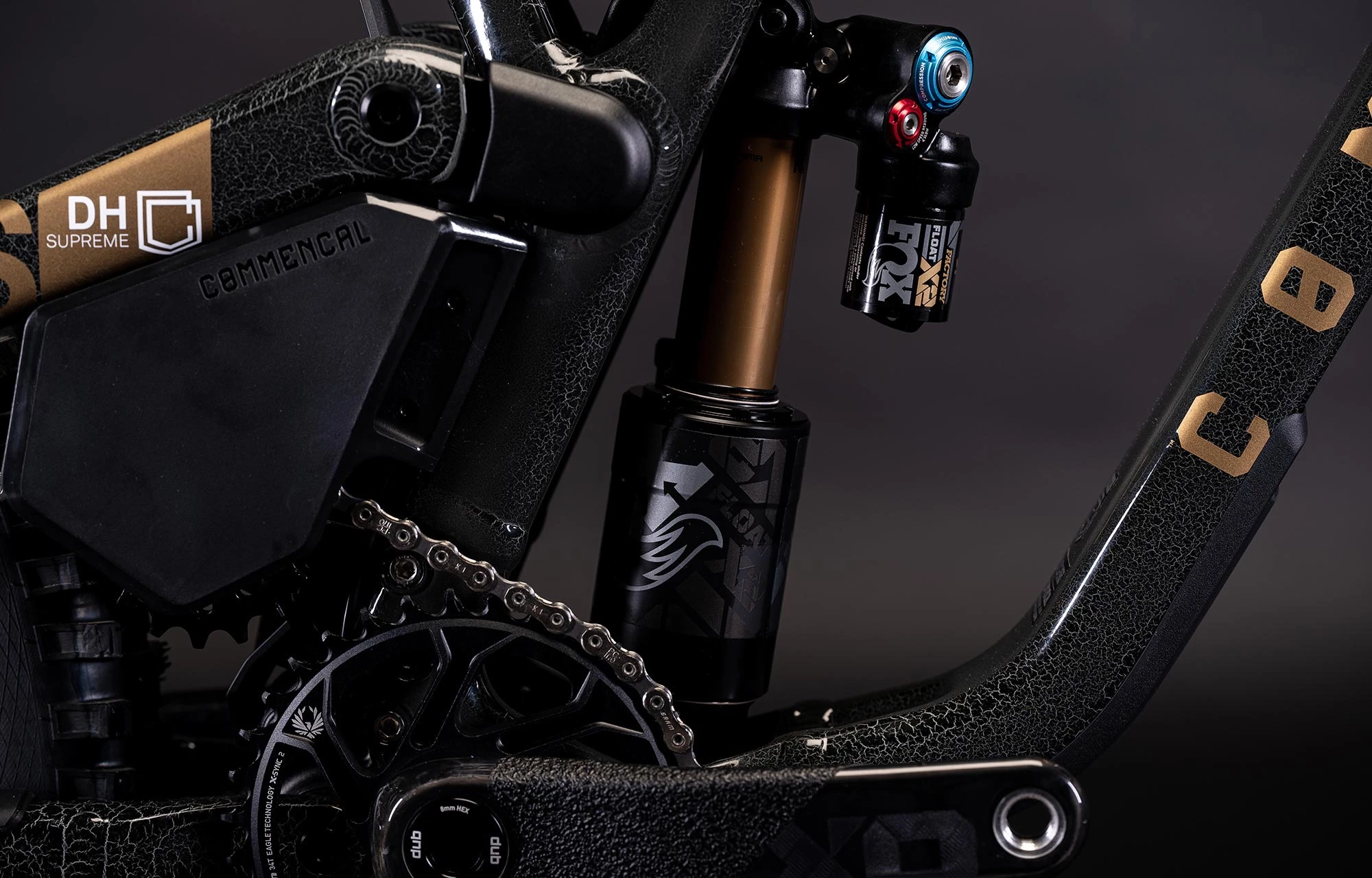

   • AMORTISSEURFOX FLOAT X2 Factory

     250 x 75 mm, HSC, LSC, HSR, LSR

   • FOURCHEFOX 40 Factory, 203 mm travel

     29″, Fit Grip2 damper, HSC, LSC, HSR, LSR, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 Tokens

   • JEU DE DIRECTIONCANE CREEK SERIES 40 ZS56/ZS56

     Alloy cups, sealed bearings

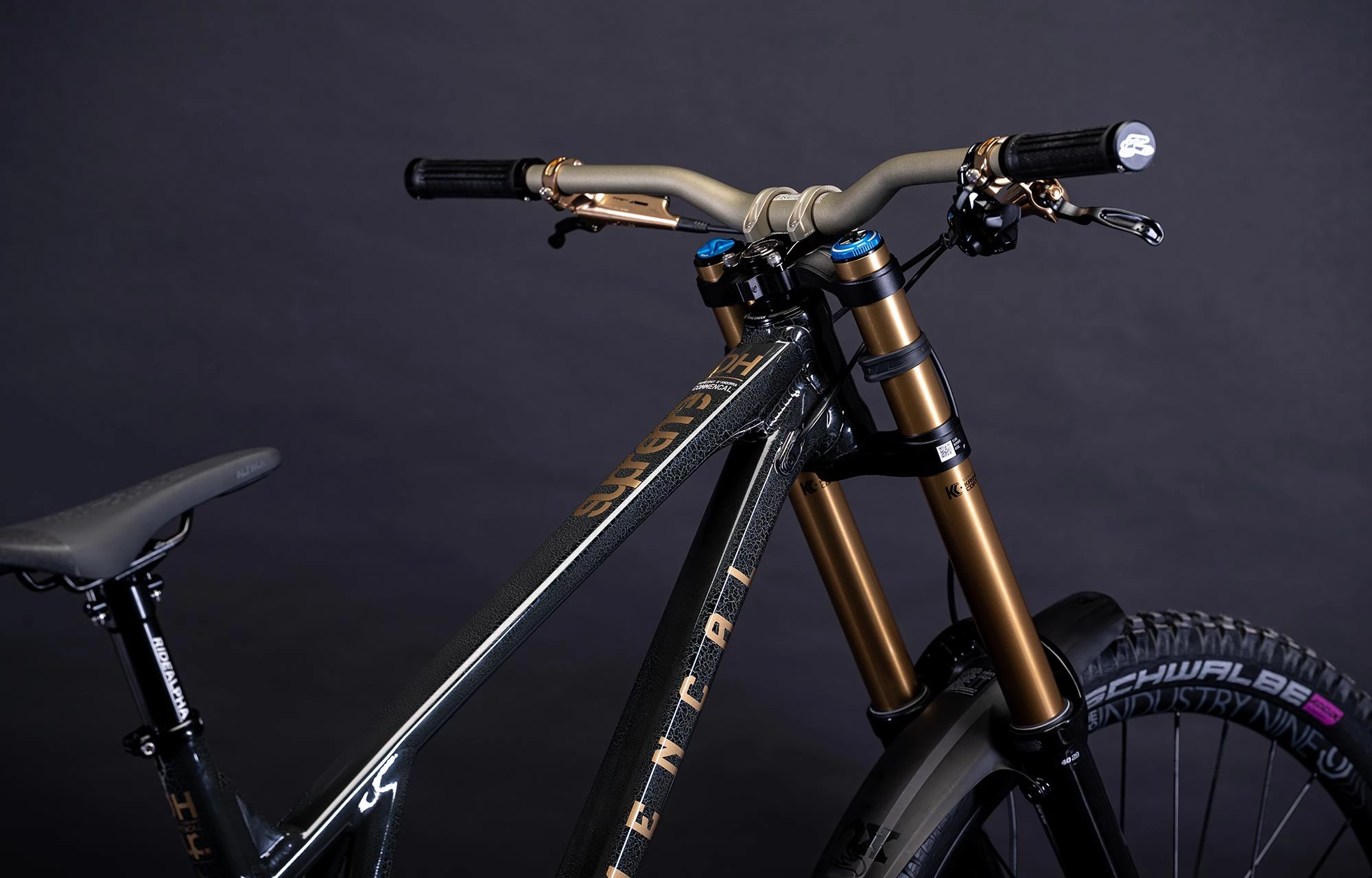

   • POTENCERENTHAL Integra II

     45 mm extension, direct mount, 31.8 mm

   • CINTRERENTHAL Fatbar V2

     31.8 mm, 80 mm width, 30 mm rise, AluGold

   • GRIPSRENTHAL Traction Lock On

     Ultra tacky, black

   • FREINSTRP DH-R EVO Gold, 4 pistons, resin pads

     Rotor: TRP R1 223 mm, 6-bolt, 2.3 mm width

   • SHIFTERSSRAM GX DH

     7 sp

   • GUIDE CHAINEE13 LG1 + Bottom Guide

     32-34t

   • DERAILLEURSRAM GX DH

     7 sp

   • BOITIER DE PEDALIERSRAM DUB

     Pressfit

   • PEDALIERSRAM X01 DH, 165 mm crank arms, DUB

     Chainring: SRAM X01 DH, 34t

   • CHAINESRAM PC-1170

     Black

   • CASSETTESRAM GX DH

     7 sp, 11-25t

   • JANTESINDUSTRY NINE Grade 300

     REAR: 27.5”, 32h, 30 mm inner width – FRONT: 29”, 32h, 30 mm inner width

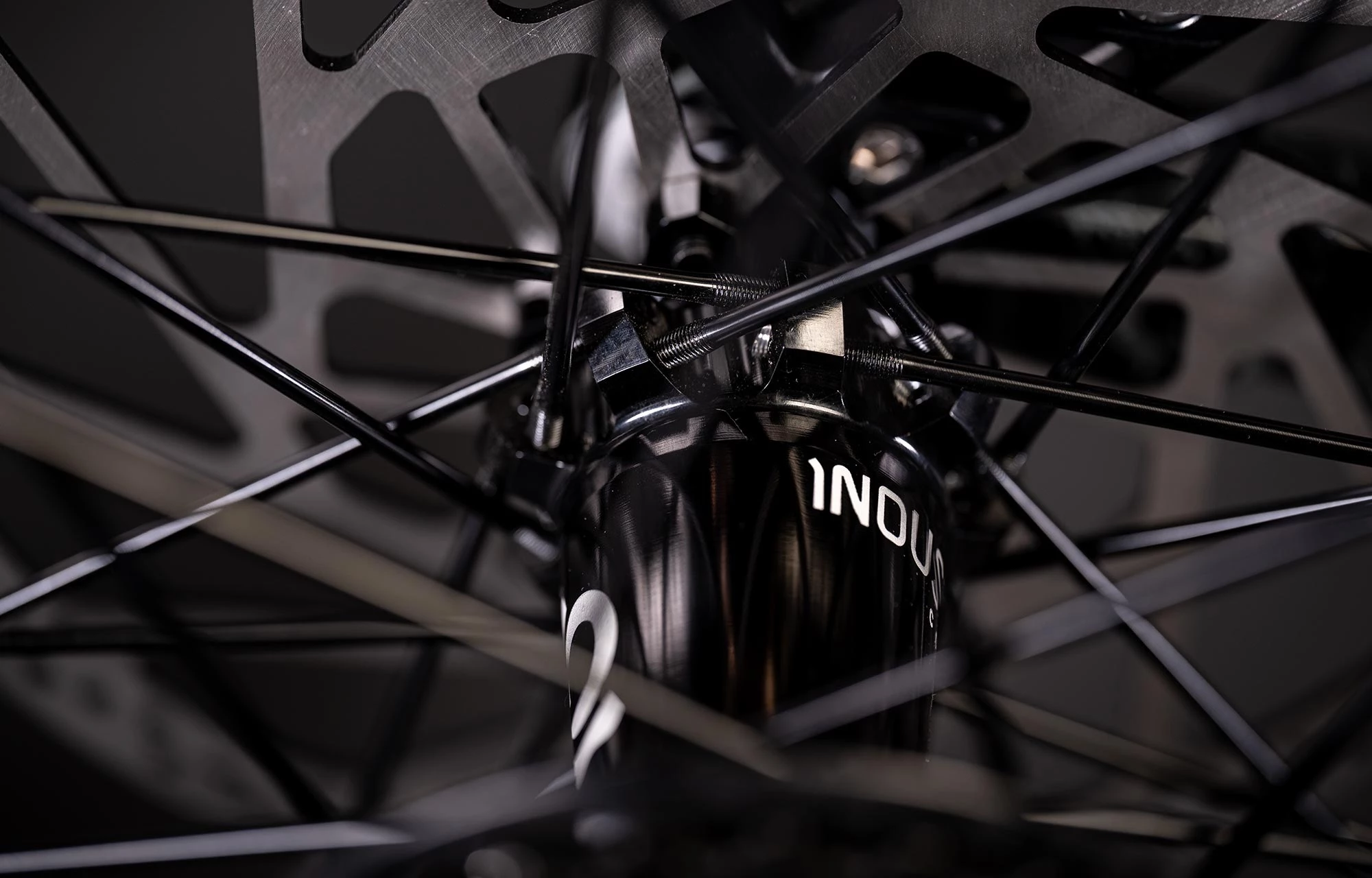

   • MOYEUXRear: INDUSTRY NINE Hydra – Front: INDUSTRY NINE Hydra

     Rear: 32h, sealed bearings, 12 x 157 mm, black – Front: 32h, sealed bearings, 20 x 110 mm Boost, black

   • RAYONSINDUSTRY NINE

     Aluminium, Direct thread

   • PNEUSRear: SCHWALBE Big Betty – Front: SCHWALBE Magic Mary

     REAR: 27.5” x 2.4”, Super DH, Addix Ultra Soft – FRONT: 29″ x 2.4″, Super DH, Addix Ultra Soft

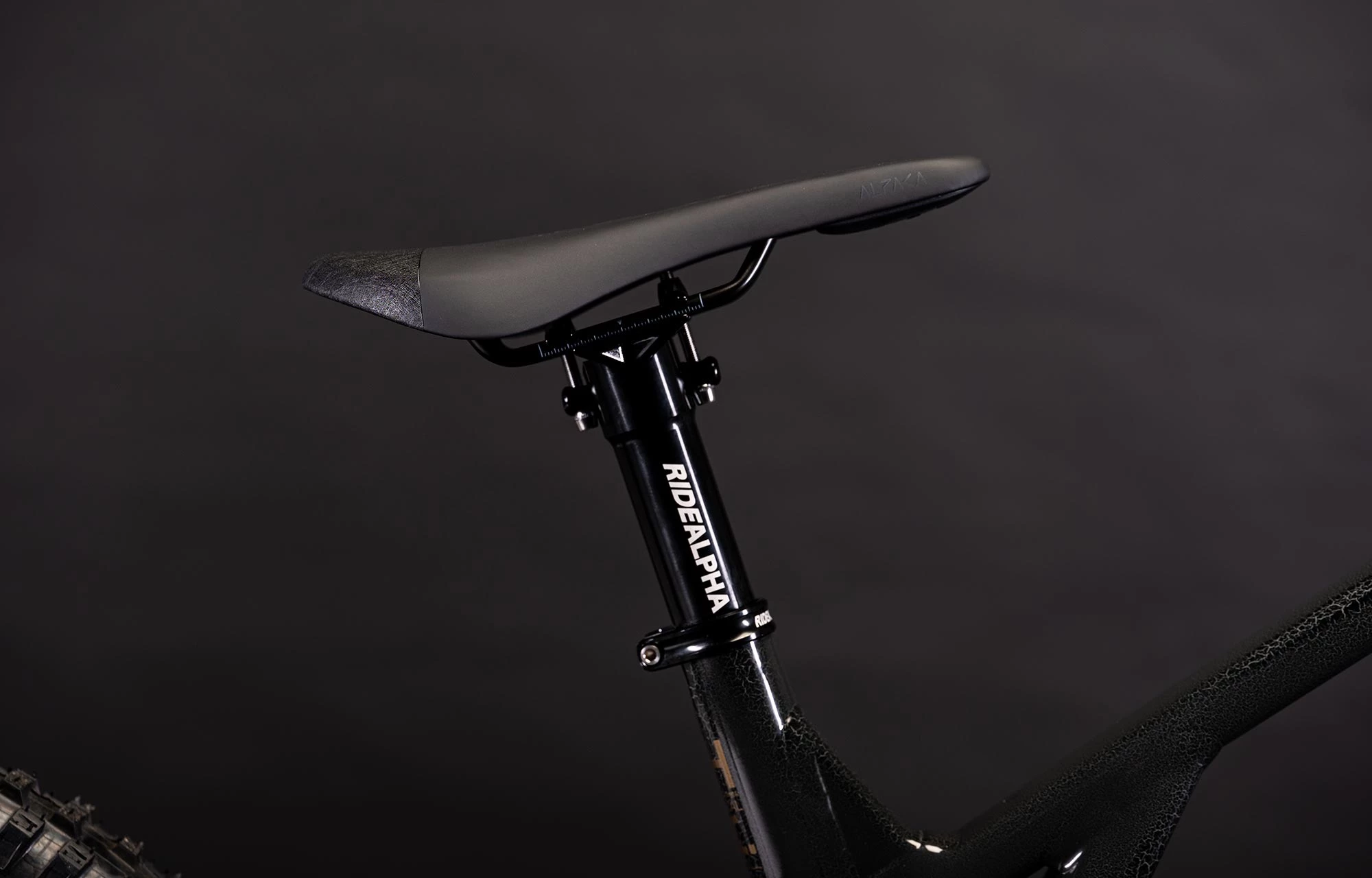

   • TIGE DE SELLERIDE ALPHA Super Light

     31.6 mm, 250 mm, Alloy 7075

   • SELLEFIZIK Gravita Alpaca X5

     MG rails, flexible “wings”

   • POIDS– kg

     Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

   • PEDALESNo

   • COULEURWrinkled Grey

     Shiny Finish

   • ACCESSOIRESChainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard, pick-up pad, tubeless valves, fork fender specific Fox 40

2. Vidéos

3. Tech

   • TYPE DE VELOFrame DH Racing

   • CADREAl 6066 T6

   • POIDS DU CADRE4,2 kg (without accessories)

   • DEBATTEMENT ARRIERE220 mm

   • ENTRE-AXE / COURSE250 mm / 75 mm

   • COMPATIBLE PIGGY BACKYes

   • BUSELURES AMORTISSEUR30 x 8 mm / 30 x 8 mm

   • HAUTEUR DE FOURCHE RECOMMANDEE / MAX612 mm / 620 mm

   • JEU DE DIRECTIONZS56 / ZS56

   • LARGEUR MAXIMALE PNEUS (ETRTO)65 mm

   • STANDARD FREIN A DISQUEPostmount 200 mm

   • DIAMETRE MAX DISQUE DE FREIN AR223 mm

   • DIAMETRE TIGE DE SELLE / COLLIER DE SELLE31,6 mm / 34,9 mm

   • BOITIER DE PEDALIERPress Fit BB 107

   • ISCGISCG 05

   • AXE DE ROUE ARRIERE157 x 12 mm

4. Géometrie

5. Tailles

6. Photos

7. News
